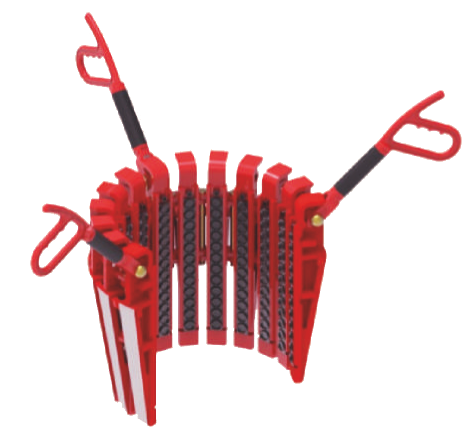

JOT Casing Pipe Slips are made out of best quality of alloy steel having an API taper of 4 inch per feet on the diameter, fitted with circular buttons and with 3 to 4 Nos of up right handles. Multi Segment design of slips ensure self centering of casings in the rotary table. Slips insert are so designed that these hold the casing pipe firmly with-out causing any damage. The advantage of multi segment design lies in the fact that by simply increasing or decreasing the number of slip segments, casing sizes from 5 inch to 30 inch OD can be handled with ease while dressing the slip with appropriate size of insert.



Description

Casing Size (OD, inches)

5 5 1/2 6-5/8 7 7-5/8 8-5/8 9-5/8* 10-3/4*
P/N, Slip Complete w/Circular Buttons 10300 10300 A 10301 10302 10303 10304 10305 10306
Weight Complete with Insert (Approx) 89 kg. 88 kg. 89 kg. 84 kg. 76 kg. 83 kg. 88 kg. 95 kg.
Total number of Segments 11 11 12 12 12 13 14 15
Total number of Intermediate Segments 9 9 10 10 10 11 12 13
Total number of Hings Pins 10 10 11 11 11 12 13 14


Description

Casing Size (OD, inches)

11-3/4* 13-3/8* 16* 18-5/8* 20* 24* 26* 30*
P/N, Slip Complete with Circular Buttons 10307
10308
10309 10310 10311 10312 10313 10314
Weight Complete with Insert (Approx) 118 kg. 112 kg. 140 kg. 167 kg. 175 kg. 202 kg. 222 kg. 249 kg.
Total number of Segments 17 18 21 25 26 30 33 37
Total number of Intermediate Segments 15 16 19 23 24 28 21 35
Total number of Hings Pins 16 17 20 24 25 29 32 36
Note : *These Sizes are furnished with four handle.

Casing Slip Spare Parts List



Description

CMS-XL Part No.

Segment - Right End 10316
Segment - Left End 10317
Segment - Intermediate 10318
Hinge Pin with Cotter Pin 10319
Handle Pin with Washer & Cotter Pin 10320
Handle for Right & Left End Segment 10321
Handle for Intermediate Segments 10322
Retaining Screw w/Lock Washer 10323

Casing Slip Casing Slip

JOT-CMS
Figure No. 15



Circular Buttons for CMS-SL & CP-S Slips


Slips

Circular Buttons

Type

Casing Sizes (Inches)

Part No. Qty. Per Set

CMS-XL

Extra Long

5 10221-132 132
5 1/2 10222-132 132
6.5/8 10228-144 144
7 10219-144 144
7.5/8 10230-144 144
8.5/8 10230-156 156
9.5/8 10230-168 168
10.3/4 10230-180 180
11.3/4 10227-204 204
13.3/8 10230-216 216
16 10231-252 252
18.5/8 10226-300 300
20 10231-312 312
24 10231-360 444
  26 10231-396 396
  30 10231-444 444
