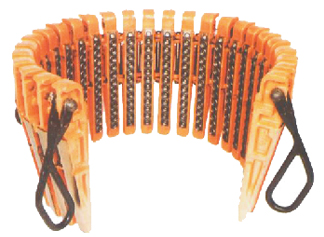

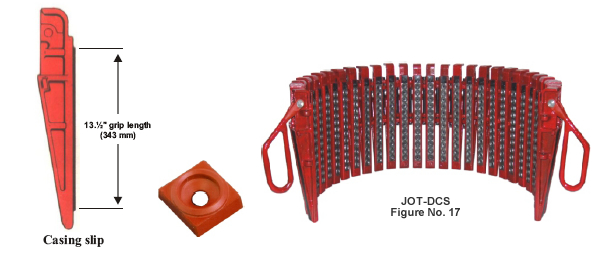

JOT Casing Pipe Slips are made out of best quality of alloy steel having an API taper of 4 inch per feet on the diameter, fitted
with circular buttons and with 3 to 4 Nos of up right handles. Multi Segment design of slips ensure self centering of casings in the rotary table. Slips insert are so designed that these hold the casing pipe firmly with-out causing any
damage. The advantage of multi segment design lies in the fact that by simply increasing or decreasing the number of
slip segments, casing sizes from 5 inch to 30 inch OD can be handled with ease while dressing the slip with
appropriate size of insert.
Description
Casing Size (OD, inches)
5
5 1/2
6-5/8
7
7-5/8
8-5/8
9-5/8*
10-3/4*
P/N, Slip Complete w/Circular Buttons
10300
10300 A
10301
10302
10303
10304
10305
10306
Weight Complete with Insert (Approx)
89 kg.
88 kg.
89 kg.
84 kg.
76 kg.
83 kg.
88 kg.
95 kg.
Total number of Segments
11
11
12
12
12
13
14
15
Total number of Intermediate Segments
9
9
10
10
10
11
12
13
Total number of Hings Pins
10
10
11
11
11
12
13
14
Description
Casing Size (OD, inches)
11-3/4*
13-3/8*
16*
18-5/8*
20*
24*
26*
30*
P/N, Slip Complete with Circular Buttons
10307
10308
10309
10310
10311
10312
10313
10314
Weight Complete with Insert (Approx)
118 kg.
112 kg.
140 kg.
167 kg.
175 kg.
202 kg.
222 kg.
249 kg.
Total number of Segments
17
18
21
25
26
30
33
37
Total number of Intermediate Segments
15
16
19
23
24
28
21
35
Total number of Hings Pins
16
17
20
24
25
29
32
36
Note : *These Sizes are furnished with four handle.
