ROTARY SLIPS

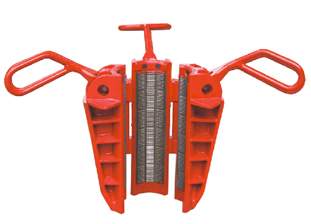

Rotary slips are one of the important handling tools used on oil field rigs and are used to hold the tubular firmly in the rotary table while carrying out specific operations. The slips are denoted as per their usage/handling of tubular i.e. drill pipe slips, drill collar slips, tubing slips and casing slips. These are then classified as per size of the tubular used and depth of the wells.

Keeping this in view Janki Oil Tools has developed the slips as per API Standards for use in the oil fields.

DRILL PIPE SLIPS


JANKI OIL TOOLS MAKE MODEL - RSST, MODEL - RSMD, MODEL - RSLG rotary slips are developed for use in standards API insert bowls. The superior design provides for full distribution of load through out the length of the slips which helps in preventing bottle necking damage of drill pipes. Janki Oil Tools make slips have maximum load carrying capacity yet are light weighted, result of a balanced design which provides the slips great strength also.

The inserts are changed at rig site itself in a very short time by simply removing the locking arrangement and retainers.

Model - RSST   : Slips are developed for shallow well drilling.
Model - RSMD  : Slips are developed for medium well drilling.
Model - RSLG   : Slips are developed for deep well drilling.

drill pipe slips
JOT-RS
Figure No. 15

JOTRS - RSST SHORT ROTARY SLIPS PART No.
Slip Body Sizes (Inches)

3.1/2

4.1/2

API Pipe sizes (OD Inches) 2.3/8 2.7/8 3.1/2 3.1/2 4 4.1/2
Slip Complete W/insert Part No. 10101 10102 10103 10104 10105 10106
Slip Complete with insert (Weight) 61 kg. 59 kg. 56 kg. 73 kg. 70 kg. 66 kg.
Insert Part No. 10160-24 10161-24 10162-24 10163-36 10164-36 10165-36

Slip Body Sizes (Inches)

3.1/2

4.1/2

Part List

Qty.

Part No.

Qty.

Part No.

Slip Segment - right 1 10107 1 10118
Slip Segment - Centre 1 10108 1 10119
Slip Segment - Left 1 10109 1 10120
Handle - Right 1 10110 1 10110
Handle - Centre 1 10111 1 10111
Handle - Left 1 10112 1 10112
Handle Pin w/Washer & Cotter Pin 3 10113 3 10113
Hinge Pin w/Cotter Pin 2 10114 2 10114
Retaining Ring 3 10115 3 10115
Insert Retaining Screw W/Washer 9 10116 9 10116
Kit, Hex Nuts, Bolts & Wrench 1 10117 1 10117


JOTRS - RSMD MEDIUM ROTARY SLIPS PART No.
Slip Body Sizes (Inches)

3.1/2

4.1/2

API Pipe Sizes (OD Inches) 2.3/8 2.7/8 3.1/2 3.1/2 4 4.1/2
Slip Complete W/insert Part No. 10121 10122 10123 10124 10125 10126
Slip Complete with insert (Weight) 88 kg. 85 kg. 82 kg. 94 kg. 91 kg. 86 kg.
Insert Part No. 10160-30 10161-30 10162-30 10163-45 10164-45 10165-45
Slip Body Sizes (Inches) 5 5.1/2
API Pipe Sizes (OD Inches) 4 4.1/2 5 4.1/2 5 5.1/2
Slip Complete W/insert Part No. 10127 10128 10129 10130 10131 10132
Slip Complete with Insert (Weight) 92.5 kg. 89 kg. 84 kg. 91 kg. 84 kg. 82.5 kg.
Insert Part No. 10168-45 10166-45 10167-45 10168-45 10169-45 10170-45
Slip Body Sizes (Inches)

3.1/2

4.1/2

5

5.1/2

Part List

Qty.

Part No.

Qty.

Part No.

Qty.

Part No.

Qty.

Part No.

Slip Segment - right 1 10133 1 10137 1 10141 1 10145
Slip Segment - Centre 1 10134 1 10138 1 10142 1 10146
Slip Segment - Left 1 10135 1 10139 1 10143 1 10147
Handle - Right 1 10110 1 10110 1 10110 1 10110
Handle - Centre 1 10111 1 10111 1 10111 1 10111
Handle - Left 1 10112 1 10112 1 10112 1 10112
Handle Pin w/Washer & Cotter Pin 3 10113 3 10113 3 10113 3 10114
Hinge Pin w/Cotter Pin 2 10136 2 10136 2 10136 2 10136
Retaining Ring 3 10140 3 10140 3 10144 3 10148
Insert Retaining Screw W/Washer 9 10116 9 10116 9 10116 9 10116
Kit, Hex Nuts, Bolts & Wrench 1 10117 1 10117 1 10117 1 10117


JOTRS - RSLG EXTRA LONG ROTARY SLIPS PART No.
Slip Body Sizes (Inches)

3.1/2

4.1/2

API Pipe Sizes (OD Inches) 2.3/4 2.7/8 3.1/2 3.1/2 4 4.1/2
Slip Complete W/insert Part No. 10149 10150 10151 10152 10153 10154
Slip Complete W/insert (Weight) - - - 104 kg. 99 kg. 93 kg.
Insert Part No. 10160-36 10161-36 10162-36 10163-54 10164-54 10164-54
Slip Body Sizes (Inches) 5 5.1/2
API Pipe Sizes (OD Inches) 4 4.1/2 5 4.1/2 5 5.1/2
Slip Complete W/insert Part No. 10155 10156 10157 10158 10159 10180
Slip Complete W/insert (Weight) 108 kg. 103 kg. 97 kg. 106 kg. 102 kg. 95 kg.
Insert Part No. 10168-54 10166-54 10167-54 10168-54 10169-54 10170-54

Slip Body Sizes (Inches)

3.1/2

4.1/2

5

5.1/2

Part List

Qty.

Part No.

Qty.

Part No.

Qty.

Part No.

Qty.

Part No.

Slip Segment - right 1 10181 1 10185 1 10188 1 10191
Slip Segment - Centre 1 10182 1 10186 1 10189 1 10192
Slip Segment - Left 1 10183 1 10187 1 10190 1 10193
Handle - Right 1 10110 1 10110 1 10110 1 10110
Handle - Centre 1 10111 1 10111 1 10111 1 10111
Handle - Left 1 10112 1 10112 1 10112 1 10112
Handle Pin w/Washer & Cotter Pin 3 10113 3 10113 3 10113 3 10114
Hinge Pin w/Cotter Pin 2 10184 2 10184 2 10184 2 10184
Retaining Ring 3 10140 3 10140 3 10144 3 10148
Insert Retaining Screw W/Washer 9 10116 9 10116 9 10116 9 10116
Kit, Hex Nuts, Bolts & Wrench 1 10117 1 10117 1 10117 1 10117
