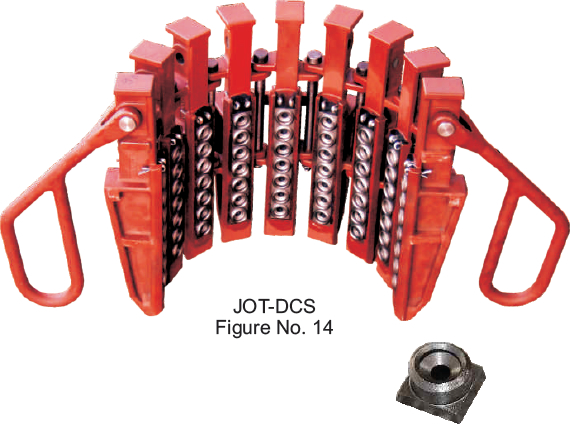

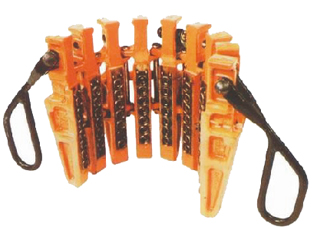

DRILL COLLAR SLIPS

JANKI OIL TOOLS have developed drill collar slips in three sizes covering all popular drill collar sizes in use from 3 inch OD to 14 inch OD. These are manufactured out of best quality alloy steel. Its multi segment design ensures full wrap around the drill collars. Segments have extra long back ensuring sufficient strength & support to the inserts. While handling drill collars it is recommended oil field practice to use multi purpose safety clamps, for which these slips are made flat on top to ensure smooth fitment of multi purpose clamp.

Description

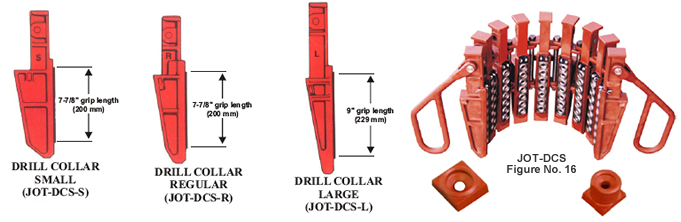

Slip Type, Size and Range (OD, inches)
JOTDCS-S JOTDCS-R JOTDCL-L
3 - 4 4 - 4.7/8 4.1/2 - 6 5.1/2 - 7 6.3/4 - 8.1/4
P/N, Slip Complete w/Circular Buttons 10201 10202 10203 10204 10205
Weight : Complete Set 51 kg. 47 kg. 54 kg. 51 kg. 70 kg.
Total number of Segments 7 7 9 9 11
Total number of Intermediate Segments 5 5 7 7 9
Total number of Hings Pins 6 6 8 8 10
User in Insert Bowl number : API or No. 3



Description

Slip Type, Size and Range (OD, inches)
JOTDCS-L
8 - 9.1/2 8.1/2 - 10 9.1/4 - 11.1/4* 11 - 12.3/4* 12 - 14*
P/N, Slip Complete w/Circular Buttons 10206 10207 10208 10209 10210
Weight : Complete Set 78 kg. 84 kg. 90 kg. 96 kg. 94 kg.
Total number of Segments 12 13 14 17 17
Total number of Intermediate Segments 10 11 12 15 15
Total number of Hings Pins 11 12 13 16 16
User in Insert Bowl number : No. 3 No. 2 No. 1
Note : *These Sizes are furnished with 4 handles.


Description

JOTDCS-SPart No.

JOTDCS-R Part No.

JOTDCS-L Part No.
Segment - Right End 10212 10237 10241
Segment - Left End 10213 10238 10242
Segment - Intermediate 10214 10239 10243
Hinge Pin w/Cotter Pin 10215 10240 10244
Handle Pin w/Washer & Cotter Pin 10216 10216 10216
Handle for Right & Left End Segment 10217 10217 10217
Handle for Intermediate Segments 10218 10218 10218
Retaining Cotter Pin 10235 10235 10235
Retaining Screw w/Lock Washer 10236 10236 10236

CIRCULAR BUTTON PART No. LIST :

Slips

Slip Size Drill Collar Range (inches)

Part No.

Qty Per Set.

DCS-S 3 - 4 10228-49 49
4 - 4 10220-49 49
DCS-R 4.1/2 - 6 10228-63 63
5.1/2 - 7 10220-63 63
DCS-L 6.3-4 - 8.1/4 10230-88 88
8 - 9.1/2 10230-96 96
8.1/2 - 10 10227-104 104
9.1/4 - 11.1/4 10230-112 112
11 - 12.3/4 10225-136 136
12 - 14 10230-136 136
